Fluorosilicone Rubber for Hose
Hardness: 60~70A
Density: 1.4g/cm2
Tensile strength: 9.0MPa
Color: translucent/milky white (color can be customized)
Application: production of inner fluorine outer silicon rubber hose products
Our advantages: professional manufacturer, strong R&D team and high-quality service
Product Introduction
Fluorosilicone rubber material for rubber hose is a copolymerized modified linear polymer compound material with a molecular weight between 500,000 and 800,000. It can be vulcanized into various elastic rubber products. It can be used to make rubber products such as rubber hoses, and is used in automobiles and aviation. Petroleum, military and other industrial fields.
Product Information:

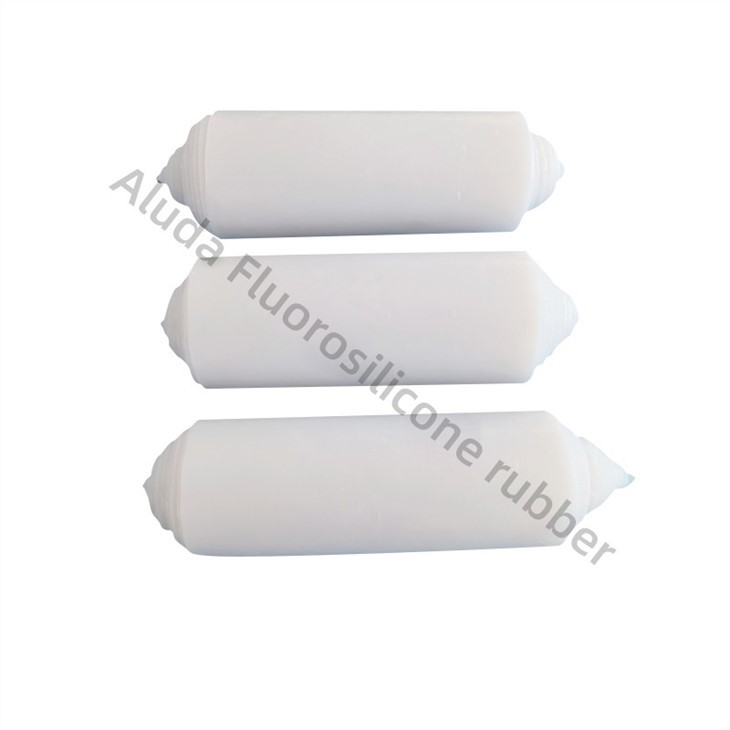

This product is fluorosilicone rubber for rubber hose. It is translucent or milky white and solid without impurities. It can be stored in a dry and ventilated environment for one year. The product can be flexibly customized in various colors, and vulcanizing agents and filler additives can be added in advance according to requirements. Various performance requirements.
Detailed Technical Parameters：
|
Item/Grade |
Test Method |
Performance Index |
|
|
Model |
|
Z1060 |
Z1070 |
|
Appearance |
|
Translucent or grayish white, smooth, without impurities |
|
|
Hardness/shore A |
ATSM D2240 |
60±5 |
70±5 |
|
Tensile Strength/MPa |
ATSM D412 |
9.0 |
9.0 |
|
Elongation at break,% |
ATSM D412 |
350 |
330 |
|
Tear strength,KN/m |
ATSM D624 |
22 |
23 |
|
Compression at set,177℃,22h |
ATSM D395 |
11 |
11 |
|
Adhesion to silica gel,KN/m |
|
2.1 |
2.1 |
|
Heat Resistance Strength,225℃,72h,% |
ATSM D573 |
-20 |
-20 |
|
Heat Resistance Elongation,225℃,72h,% |
ATSM D573 |
-10 |
-10 |
|
Fuel C Volume Change,23℃,72h,% |
ATSM D471 |
17 |
17 |
|
Fuel C Strength Change,23℃,72h,% |
ATSM D471 |
-20 |
-20 |
|
Fuel C Elongation Change,23℃,72h,% |
ATSM D471 |
-20 |
-20 |
Note:
1. Vulcanizing agent: DBPH. Dosage 0.53gDBPH/100 premixed glue
2. One stage vulcanization: 170℃*10Min. Two stage vulcanization: 200℃*4H
Instructions:
1. Mixing: Remix several times on the open mill, add vulcanizing agent, and then adjust back to 0.5mm-1mm thin pass 8-10 times after the material is finished, and then leave the tablet and park it.
2. Vulcanization: re-mill the fluorine-silicon compound rubber with vulcanizing agent, and then cut it into the required shape, and then use it.
Product Features:
Long-term working stability -60-230 degrees Celsius, short-term up to 250 degrees Celsius
Excellent resistance to fuel oil, engine oil, solvents, and chemical media
Good physical properties, processing properties
Good resilience, fast vulcanization speed, good fluidity, good bonding performance with silica gel
Storage method: store in a dry environment at room temperature, valid for one year.
Packing: Packed in plastic bags, 10 kg per bag, two bags per carton.
Shipping: This product is shipped as a non-hazardous chemical.
