What are the design considerations for fluoropolymer extrusion dies?
As a seasoned supplier in the field of fluoropolymer extrusion, I've witnessed firsthand the intricate dance between science and engineering that goes into designing extrusion dies for fluoropolymers. These dies are the heart of the extrusion process, shaping the final product with precision and efficiency. In this blog, I'll delve into the key design considerations that are crucial for creating high - quality fluoropolymer extrusion dies.
Material Compatibility
Fluoropolymers are known for their unique chemical and physical properties, such as excellent chemical resistance, high thermal stability, and low friction coefficients. When designing extrusion dies, the first and foremost consideration is the compatibility between the die material and the fluoropolymer being processed.
The die material must be able to withstand the high temperatures and pressures associated with fluoropolymer extrusion. Stainless steel is a popular choice due to its good corrosion resistance and mechanical strength. However, for more demanding applications, materials like tool steel or carbide may be required. These materials offer higher hardness and wear resistance, which is essential when extruding abrasive fluoropolymers.
Moreover, the die material should not react chemically with the fluoropolymer. Any chemical reaction can lead to contamination of the product, affecting its quality and performance. For example, some metals may react with fluoropolymers at high temperatures, causing discoloration or degradation of the polymer. Therefore, a thorough understanding of the chemical properties of both the die material and the fluoropolymer is necessary to ensure compatibility.
Flow Channel Design
The design of the flow channels in the extrusion die plays a critical role in determining the quality of the extruded product. The flow channels must be designed to ensure a uniform flow of the fluoropolymer melt. Non - uniform flow can result in defects such as surface roughness, thickness variations, and internal stresses in the final product.
One of the key factors in flow channel design is the aspect ratio. The aspect ratio is the ratio of the width to the height of the flow channel. A high aspect ratio can lead to uneven flow distribution, especially in wide dies. To overcome this, the flow channels can be designed with a tapered shape, where the width gradually decreases towards the exit of the die. This helps to balance the flow velocity across the width of the die.
Another important consideration is the presence of flow restrictors or barriers. These can be used to control the flow of the fluoropolymer melt and prevent any backflow or stagnation. Flow restrictors can be in the form of pins, baffles, or grooves in the flow channels. By strategically placing these restrictors, the flow pattern can be optimized to ensure a uniform distribution of the polymer melt.
Temperature Control
Temperature control is crucial in fluoropolymer extrusion. Fluoropolymers have a narrow processing temperature range, and maintaining a consistent temperature throughout the extrusion process is essential for achieving high - quality products.
The extrusion die must be equipped with an effective temperature control system. This can include heating elements, such as electric heaters or hot oil circulation systems, to maintain the desired temperature in the die. Cooling channels may also be incorporated to remove excess heat and prevent overheating of the die.
The temperature distribution within the die is also important. Uneven temperature distribution can cause variations in the viscosity of the fluoropolymer melt, leading to non - uniform flow and defects in the final product. To ensure a uniform temperature distribution, the heating and cooling elements should be designed and placed strategically within the die. For example, the heating elements can be arranged in a way that provides uniform heat input across the entire die surface.
Die Land Design
The die land is the section of the die where the fluoropolymer melt is shaped into the final product. The design of the die land has a significant impact on the dimensional accuracy and surface finish of the extruded product.
The length of the die land is an important parameter. A longer die land provides more time for the fluoropolymer melt to flow and form a more uniform shape. However, a very long die land can also increase the pressure drop across the die, which may require higher extrusion pressures. Therefore, the length of the die land needs to be optimized based on the specific requirements of the product and the properties of the fluoropolymer.
The surface finish of the die land is also crucial. A smooth surface finish can reduce the friction between the fluoropolymer melt and the die, resulting in a better surface finish of the extruded product. Additionally, a smooth surface can prevent the build - up of polymer on the die, which can cause defects in the product.
Ease of Maintenance
In a production environment, the ease of maintenance of the extrusion die is an important consideration. The die should be designed in a way that allows for easy cleaning, inspection, and repair.
Removable components can be incorporated into the die design to facilitate cleaning. For example, the flow channels can be designed with removable inserts that can be easily taken out and cleaned. This helps to prevent the build - up of polymer residues, which can affect the performance of the die over time.
Inspection ports can also be provided in the die to allow for visual inspection of the flow channels and other internal components. This can help to detect any potential problems, such as blockages or wear, at an early stage.
Product - Specific Considerations
Depending on the specific application of the fluoropolymer product, there may be additional design considerations. For example, if the product is required to have a specific shape or profile, the die must be designed accordingly.
If the product is intended for use in a high - temperature or high - pressure environment, the die design may need to be modified to ensure that the extruded product can withstand these conditions. This may involve using materials with higher strength and heat resistance or incorporating additional reinforcement features into the die design.

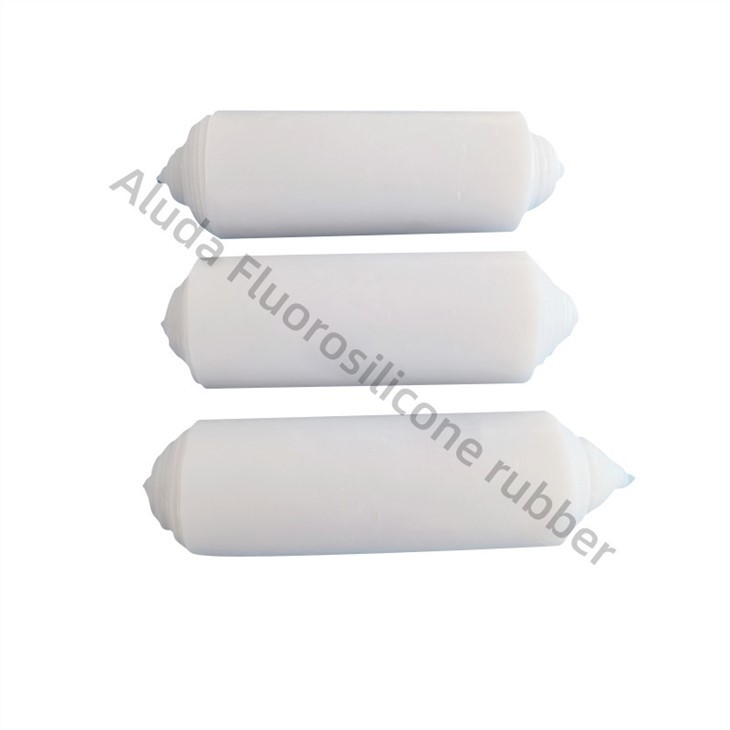

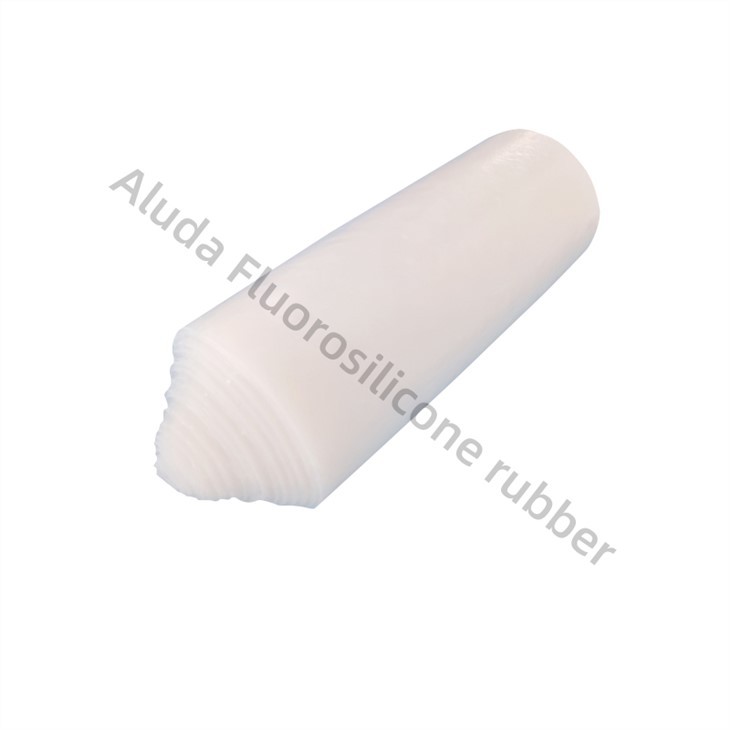

In some cases, the product may require specific surface properties, such as flame retardancy or high tear resistance. For products with flame retardancy requirements, you can explore Flame Retardant Fluorosilicone Rubber. If high tear resistance is needed, High Tear Resistance Fluorosilicone Rubber could be a great option. And for applications requiring high resilience and low pressure variable, High Resilience Low Pressure Variable Fluorosilicone Rubber can be considered. The die design may need to be adjusted to ensure that these properties are achieved during the extrusion process.
Conclusion
Designing extrusion dies for fluoropolymers is a complex process that requires a comprehensive understanding of the material properties, flow behavior, and product requirements. By considering factors such as material compatibility, flow channel design, temperature control, die land design, ease of maintenance, and product - specific requirements, high - quality extrusion dies can be developed.
If you are in the market for fluoropolymer extrusion products or have specific requirements for extrusion dies, I encourage you to reach out for a detailed discussion. Our team of experts is ready to work with you to find the best solutions for your needs. We have the experience and expertise to design and manufacture extrusion dies that meet the highest standards of quality and performance. Contact us today to start the conversation about your fluoropolymer extrusion requirements.
